Mapping properties of some complex functions



We illustrate the mapping properties by mapping a rectangular grid consisting of vertical and horizontal lines. No explanation concerning the Maple programming is given.

> mymap:=proc(f,z,xmin,xmax,ymin,ymax,N)
local t,hx,hy,L,k;
hx:=(xmax-xmin)/N;
hy:=(ymax-ymin)/N;
L:=[];
for k from 0 to N do
L:=[op(L),plot([Re(f(xmin+hx*k+I*t)),Im(f(xmin+k*hx+I*t)),t=ymin..ymax],scaling=constrained,color=red)];
L:=[op(L),plot([Re(f(I*(ymin+hy*k)+t)),Im(f(I*(ymin+hy*k)+t)),t=xmin..xmax],scaling=constrained,color=green)];
end do:
L;
end proc:


>


> with(plots):


> myid:=z->z:


> A:=Array(1..2):


The first function is the square of a complex number:

> f:=z->z^2;


proc (z) options operator, arrow; `*`(`^`(z, 2)) end proc

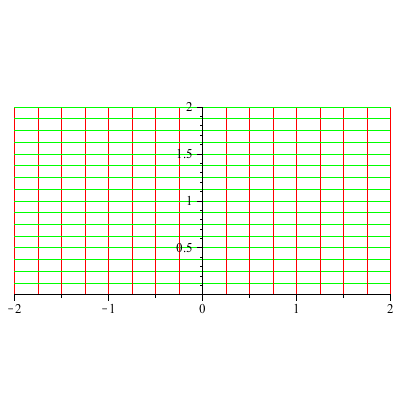

> A[1]:=display(mymap(myid,z,-2,2,0,2,16)):


> A[2]:=display(mymap(f,z,-2,2,0,2,16)):


> display(A);


Plot_2d Plot_2d



The next example is for the cosine.

> gg:=z->cos(z);


proc (z) options operator, arrow; cos(z) end proc


> B:=Array(1..2):


> B[2]:=display(mymap(gg,z,-Pi,Pi,0,2,16)):


> B[1]:=display(mymap(myid,z,-Pi,Pi,0,2,16)):


> display(B);


Plot_2d Plot_2d



The exponential function in two different domains.

> h:=z->exp(z);


proc (z) options operator, arrow; exp(z) end proc


> C:=Array(1..2):


> C[1]:=display(mymap(myid,z,-4,4,0,Pi,16)):


> C[2]:=display(mymap(h,z,-4,4,0,Pi,16)):


> display(C);


Plot_2d Plot_2d



> C[1]:=display(mymap(myid,z,-4,4,0,2*Pi,16)):


> C[2]:=display(mymap(h,z,-4,4,0,2*Pi,16)):


> display(C);


Plot_2d Plot_2d



The natural logarithm function

> hh:=z->evalc(ln(z));


proc (z) options operator, arrow; evalc(ln(z)) end proc


> G:=Array(1..2):


> G[1]:=display(mymap(myid,z,0.1,4,0.1,4,16)):


> G[2]:=display(mymap(hh,z,0.1,4,0.1,4,16)):


> display(G);


Plot_2d Plot_2d



A polynomial of degree 3

> f1:=z->z^3-3*z;


proc (z) options operator, arrow; `+`(`*`(`^`(z, 3)), `-`(`*`(3, `*`(z)))) end proc


> H:=Array(1..2):

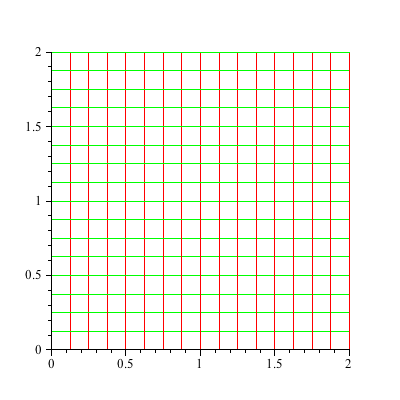

> H[1]:=display(mymap(myid,z,0,2,0,2,16)):


> H[2]:=display(mymap(f1,z,0,2,0,2,16)):


> display(H);


Plot_2d Plot_2d



The inverse, with two different domains.

> f2:=z->1/z;


proc (z) options operator, arrow; `/`(1, `*`(z)) end proc


> K:=Array(1..2):


> K[1]:=display(mymap(myid,z,0.25,4,0.25,4,16)):


> K[2]:=display(mymap(f2,z,0.25,4,0.25,4,16)):


> display(K);


Plot_2d Plot_2d



> L:=Array(1..2):


> L[1]:=display(mymap(myid,z,-4 ,4,-4,4,17)):


> L[2]:=display(mymap(f2,z,-4,4,-4,4,17)):


> display(L);


Plot_2d Plot_2d



>
